2HB（AccuSlide）直線工作臺

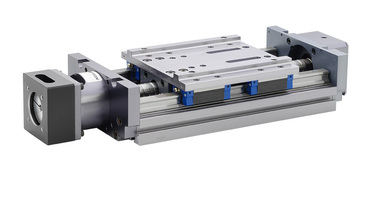

Thomson's 2HB (AccuSlide) is a high performance slide table based on Thomson's continuously supported, ProfileRail system using square rail technology. The units are designed to absorb extremely high load torques and offer superior performance life in difficult applications.

產品介紹

Let Thomson Help You Make Your Selection!

Linear MOTIONEERING^® LMS Sizing & Selection Tool >

2HB Linear Table Specifications:

Specifications / Shaft Size	2HB10	2HB20
Profile size (width x height): mm (in)	100 x 60 (3.9 x 2.4)	200 x 90 (7.9 x 3.5)
Max Stroke Length: mm (in)	1375 (54.13)	2760 (108.7)
Max Linear Speed: m/s (in/s)	0.47 (18.5)	0.75 (29.5)
Max Acceleration: m/s2 (in/s2)	9.8 (386)	9.8 (386)
Repeatability: ± mm (in)	0.005 (0.0002)	0.005 (0.0002)
Max Input Speed: rpm (rev/s)	2800 (46.7)	1800 (30)
Operation Temperature Limits: °C (°F)	-20 to 80 (-4 to 176)	-20 to 80 (-4 to 176)
Max Dynamic Load Fx: N (lbf)	2100 (472)	4697 (1056)
Max Dynamic Load Fy: N (lbf)	8000 (1798)	34000 (7644)
Max Dynamic Load Fz: N (lbf)	8000 (1798)	34000 (7644)
Max Dynamic Load Torque (Mx): Nm (lbf-in)	279 (2469)	2463 (21799)
Max Dynamic Load Torque (My): Nm (lbf-in)	216 (1912)	1903 (16843)
Max Dynamic Load Torque (Mz): Nm (lbf-in)	216 (1912)	1903 (16843)
Max Drive Shaft Force (Frd): N (lbf)	533 (119.8)	533 (119.8)
Max Drive Shaft Torque (Mta): Nm (lbf-in)	1.86 (16.5)	15.5 (137.2)
Screw Diameter: mm (in)	16 (0.63)	25 (0.98)
Screw Lead: mm (in)	5, 10 (0.2, 0.4)	5, 10, 25 (0.2, 0.4, 1.0)
Weight: kg (lb) of unit with zero stroke of every 100 mm of stroke of each carriage	2.59 (5.71) 0.69 (1.52) 0.82 (1.81)	13.32 (29.37) 1.70 (3.75) 4.47 (9.86)

2HB Linear Table Feature Highlights:

An integral ball screw assembly
T-slots in carriage

Low profile and compact
Long travel life capability
Double acting seals

2HB Linear Table Option Highlights:

Bellows way covers
Shroud covers
Limit switch packages

Radial mount ball screw shaft extenders
Lubrication system
